General Dimensional Tolerances For Sheet Metal Formed Parts

Sms is not responsible for distortion of internal features inside bend areas applies to all internal features applies to flat part length up to 24 00.

General dimensional tolerances for sheet metal formed parts.

This japanese industrial standard specifies general dimensional tolerances for parts formed by press working from sheet metal. I know the standard is to dimension the outside of the part along with the inside radii. And for machined components iso 27 68 fh can be used. It applies to the dimensions of work pieces that are produced by metal removal or are formed from sheet metal.

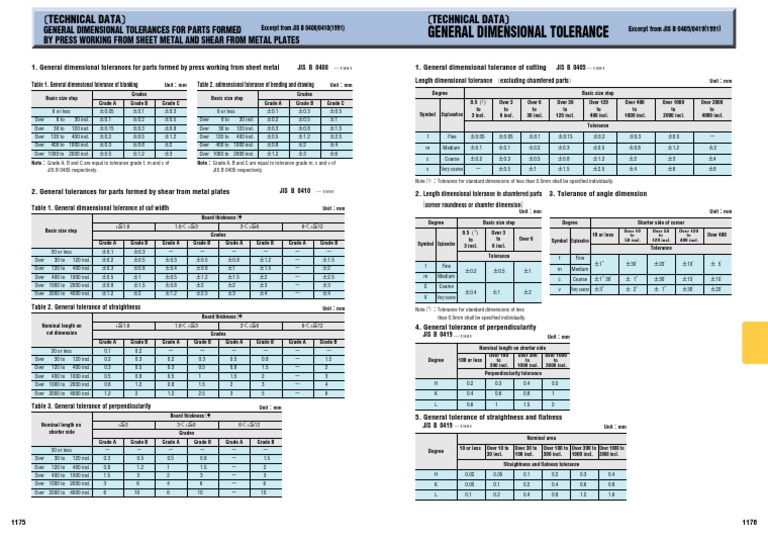

Tolerances for linear and angular dimensions without individual tolerance indications. Regular cut dimension tolerance jis b 0405 1991 tolerances for length excluding chamfered portion units. General dimensional tolerance of blanking unit mm 1. General dimensional tolerances for parts formed.

For sheet metal parts iso 27 68 mk is used. General dimensional tolerances for parts formed excerpt from jis b 0408 0410 1991 general dimensional tolerance exce rpt f om jis b 045 19 by press working from sheet metal and shear from metal plates technical data technical data table 1. Dimensional tolerances only apply to part in constrained state 3. However on the sketches i was given the inside width of the u is specified possibly because the inside surfaces will mate with another part.

Flat part length over 24 00 tolerance is 0 010 k l a sheet 1 of 1 sms sheet metal tolerances do not scale drawing. As a designer if you carefully consider the manufacturer s tolerances when designing you will have a greater outcome than simply designing and assuming all parts are nominal size. This part is intended to simplify drawing indications and specifies general tolerances in four tolerance classes. General tolerance iso 2768 does not specify where to use these tolerances.

As per design requirements and manufacturing capability tolerance class is defined. I was given several sheet metal parts they are basically u shaped with three flat sides. General dimensional tolerances for parts formed by press excerpts from jis b 0408 1991 working from sheet metal and shear from metal plates jis b 0410 1991 technical data 1. Uncontrolled dimensions contain two different categories of tolerances.

General dimensional tolerance of blanking unit mm 1. Tolerance for length of chamfered portion. General dimensional tolerances for parts formed excerpt from jis b 0408 0410 1991 general dimensional tolerance exce rpt f om jis b 045 19 by press working from sheet metal and shear from metal plates technical data technical data table 1.
